High quality 2 1/2" stainless steel ningbo hydraulic pressure gauge   Product Description     ningbo hydraulic pressure gauge  description:
        •outdoor and severe ambient and process conditions
•Use where harmful vibration and pulsation are present
•Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems       Application    ningbo hydraulic pressure gauge  application:

Gaseous, liquid, and corrosive media corrosive environmen   Specification         ningbo hydraulic pressure gauge specification:

Dial 1.5″,2″,2.5″,4″(40mm,50mm,63mm,100mm)
Case Material Stainless Steel 304, Brass Internal
Accuracy class

1.5″(40mm),2(50mm):±2.5% of full scale
2.5″(63mm),4″(100mm): ±1.5% of full scale

Scale ranges -1—1000bar
Process connection: 1⁄8″,1⁄4″, 1/2″NPT OR BSP standard with restricted orifice
Burdon tube: phosphor bronze
Wetted parts/socket: Brass
Movement Brass
Point Aluminum,micrometer adjustable
Welding Silver alloy
Window(lens) Tempered glass,safety glass
Fill Glycerin
IP Class IP65
  Options/notes:

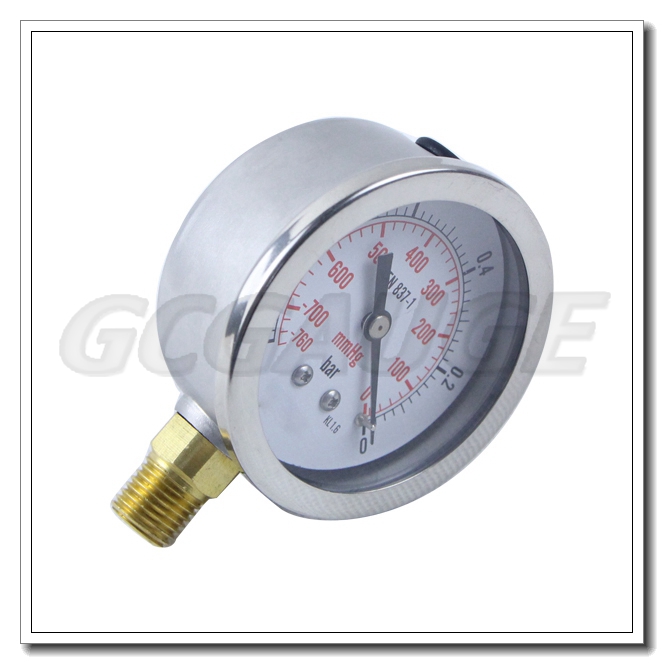

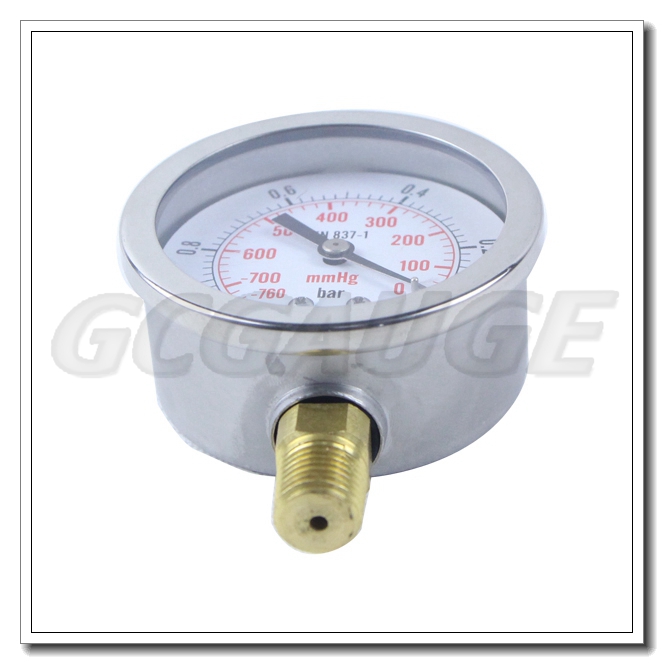

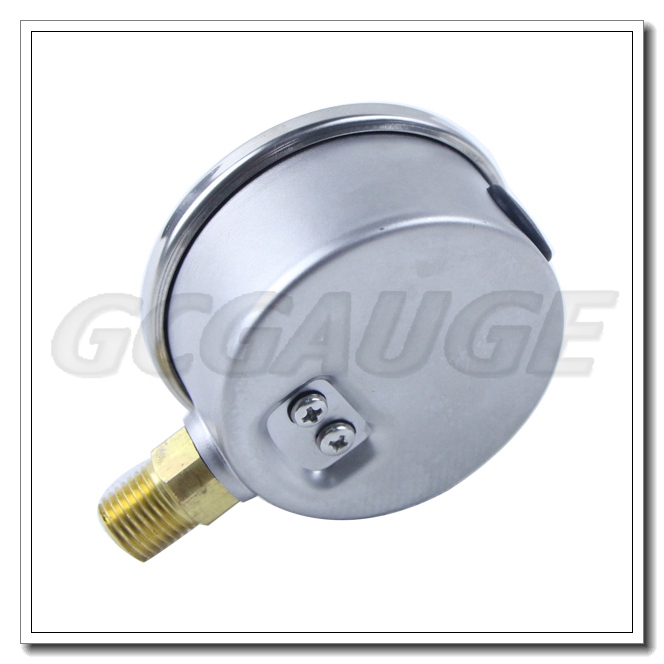

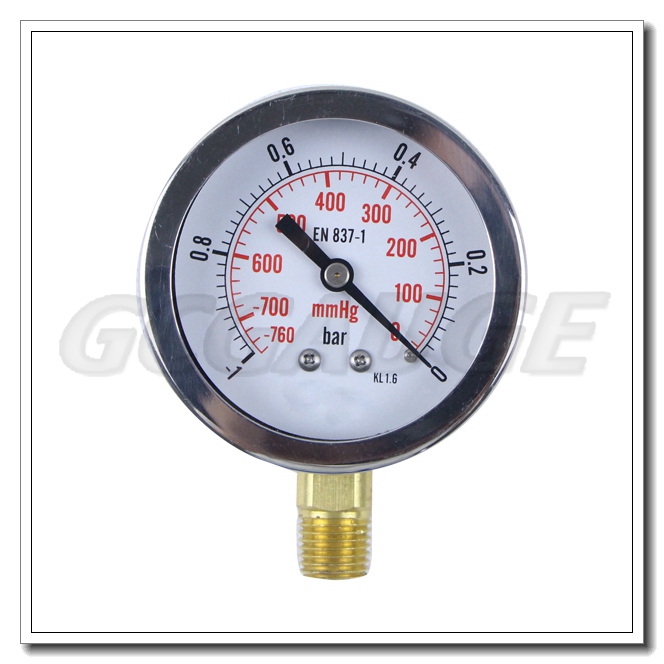

• Lower or back entry, panel mount or surface mount.             Product Pictures     These all are different types pressure gauge, we are committed to offer the good quality gauge for all over the world especially USA and European market.                 Quality Control     Based on the advanced equipment, high technology, serious inspection procedure, best after-sales service, our professional level and unremitting efforts, gaining the best reputation and response from the customers. Testing  Welding Quality Control   Packaging & Shipping     From the raw material to the finished production we have the very strict and serious procedure to guarantee our products get to the different quality requirements.   Company Information     Ningbo GC-BOB Instrument Company is a professional pressure gauge & thermometer manufacturer which located in China main port Ningbo, cover an area of 2000 square.         Why choose us? ------- Ningbo GC Bob Instrument Co.,Ltd.
------------------------------------------------------------------------------------------------
1) Advance Equipment and Professional Technology: we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.


2) Best After-sales Service : Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.


3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.


4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.


5) Convenient Purchase And Save Cost: GCBob is a direct exporter and skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.
6) Best Reputation : Our factory have ten years experiences and have already gaining the best reputation and response from the customers from all over the world.

7) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

8) Multilingual: We can provide all kinds of languages, English, Spanish, French, Arabic, Japanese, Russian, meet the different needs of our customers.   Welcome OEM orders and process according to customer’s sample or drawing. We will constantly develop new products, new technology of application and consistently focus on product quality and after-sales service with the company's image,our goal is a long trade cooperation term.
